The hazardous waste incineration flue gas wet electrostatic precipitator has been delivered to Liaoning. This equipment can handle a gas volume of 40,000 m³/h, with the gas temperature not exceeding 80℃. The equipment operates under positive pressure and the designed pressure is less than 5000 Pa.

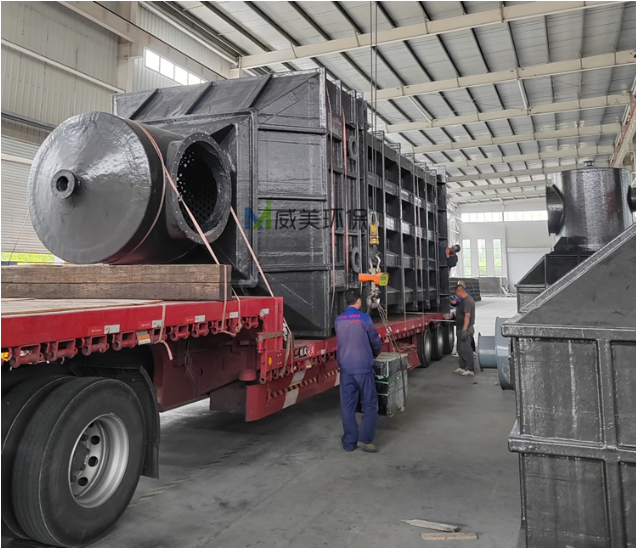

The hazardous waste incineration flue gas wet electrostatic precipitator has been delivered to Liaoning
The wet electrostatic precipitator for zinc smelting tail gas treatment by Weimei Environmental Protection was recently shipped to Ningxia. This demister is a treatment equipment for high-humidity and highly corrosive tail gas.
Zinc Smelting Tail Gas Treatment Wet Electrostatic Precipitator Project
The flue gas handling capacity of this equipment is ≤ 30,000 m³/h, the flue gas temperature is ≤ 80℃, and the flue gas is derived from a molten zinc furnace. Its mist removal efficiency is > 90%, and the equipment operates under negative pressure with a running pressure of -5000 Pa.

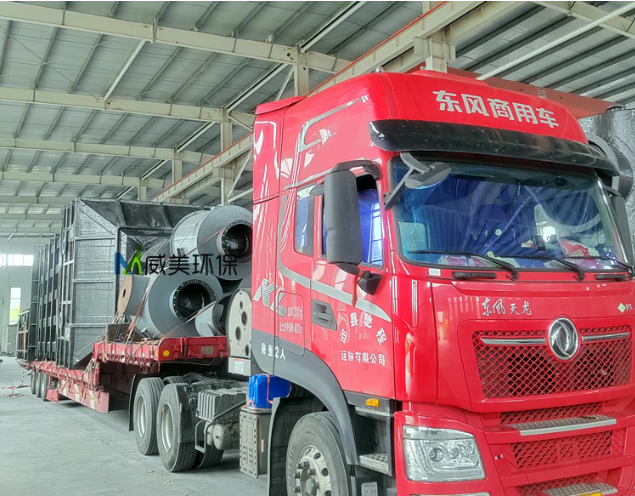

The wet electrostatic precipitator for zinc smelting tail gas treatment is loaded and ready to depart.
This wet electrostatic precipitator (WESP) processes flue gas that has been purified by a secondary desulfurization tower. The design operating temperature is 60°C, with a maximum instantaneous operating temperature of 80°C. It employs intermittent spray water washing for cleaning.
The tail gas treatment requirements are:
Dust emission concentration at the outlet ≤ 10 mg/Nm³
Dust removal efficiency ≥ 90%
The WESP shell is constructed from 316L stainless steel, which provides enhanced temperature and corrosion resistance.
The outer shell of the wet electrostatic precipitator is made of corrosion-resistant 316L stainless steel.
The anode tubes of the wet electrostatic precipitator are made of flame-retardant vinyl fiberglass reinforced plastic (FRP).
The Ningxia Hydrocyanic Acid Tail Gas Treatment Wet Electrostatic Precipitator Project
The wet electrostatic precipitator, made of 2205 material and designed for flue gas treatment at the front-end of the yellow phosphorus furnace, has been officially put into operation.

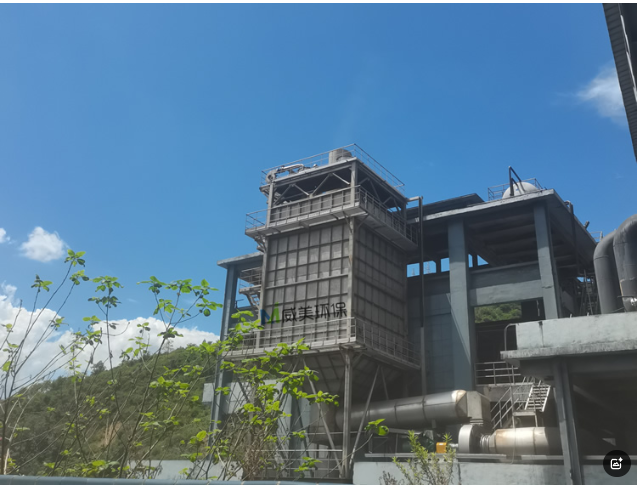

wet electrostatic precipitator, made of 2205 material,has been officially put into operation.
The flue gas handling capacity of this equipment is ≤ 80,000 m³/h, the flue gas temperature is ≤ 90℃, the working pressure is ≤ 7,000 Pa, and the designed flow velocity of the demister is ≤ 1 m/s. Since the flue gas is from the front-end of the yellow phosphorus furnace and contains highly corrosive media such as sulfur, phosphorus, arsenic and fluorine, the anode tubes, upper shell, middle shell and lower shell of the wet electrostatic precipitator are all made of 2205 duplex stainless steel. With its excellent impact toughness and outstanding overall and local corrosion resistance, it ensures the stable operation of the entire equipment system.

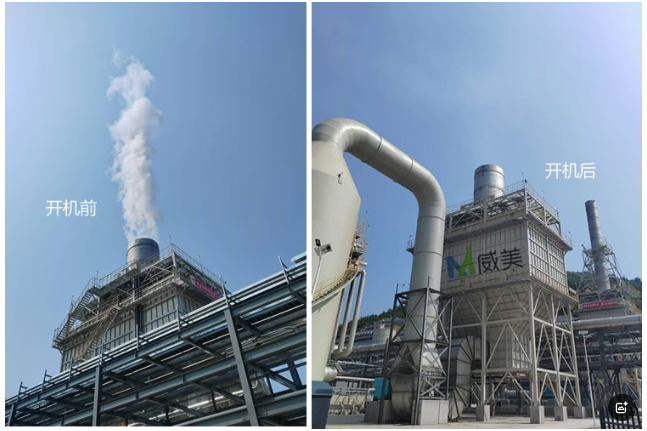

The wet electrostatic precipitator has been delivered to the customer and put into use (visually smokeless).
The medium treated by this wet electrostatic precipitator(WESP) is desulfurization flue gas, which contains highly corrosive substances such as sulfur, phosphorus, arsenic and fluorine. The operating temperature is ≤ 60℃, and the operating pressure is within 6,000 Pa.

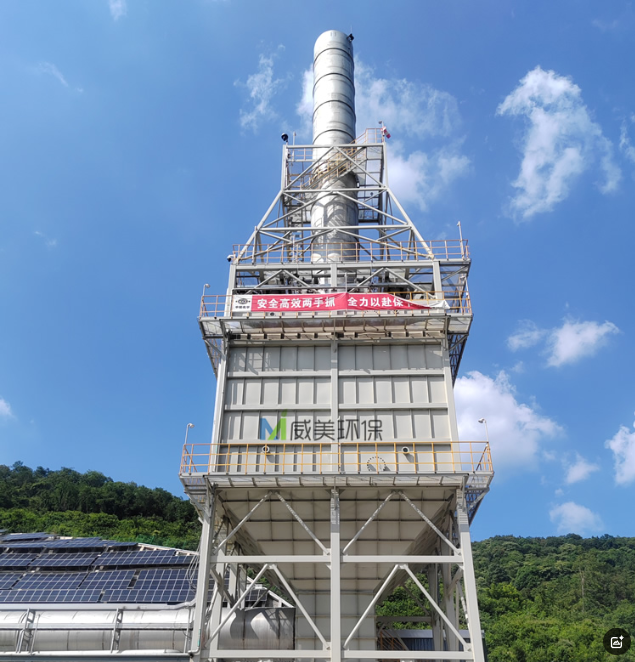

The wet electrostatic precipitator for desulfurization tail gas with a 200,000 m³/h flue gas handling capacity has been put into operation (visually smokeless).
The anode tubes of the wet electrostatic precipitator are made of conductive fiberglass reinforced plastic (FRP), with a wall thickness of 3 mm. The resin adopted is flame-retardant vinyl ester resin, and the inner surface is smooth and clean for easy flushing. The resistance of each anode tube is less than 100 Ω. The main beams, secondary beams and cathode wires are made of 2205 duplex stainless steel. The counterweights are made of high-temperature and corrosion-resistant ceramic material.
A 500,000 Nm³/h wet electrostatic precipitator for yellow phosphorus slag gas has successfully finished commissioning and been handed over to the customer for use!! Adopting wet electrostatic demisting (dust removal) technology to treat the tail gas of yellow phosphorus slag, this equipment helps the customer meet environmental protection standards and optimize production. The medium handled by this 500,000 Nm³/h wet electrostatic demister is the slag gas generated from the water quenching of yellow phosphorus furnace slag. The gas contains highly corrosive substances such as sulfur, phosphorus, arsenic and fluorine, with an operating temperature ≤ 60℃ and an operating pressure within 6000 Pa.
Baghouse Dust Collector for the Flue Gas Pre-treatment Unit of the 100 t/h High-temperature & High-pressure Gas-fired Boiler (540℃, 9.8 MPa) Fueled by Yellow Phosphorus Tail Gas
This unit adopts sodium carbonate (Na?CO?) as the flue gas treatment agent, and employs a baghouse dust collector for mist removal. The flue gas pre-treatment unit consists of four parts: a raw material silo, a feeding system, a mixing and drying system, and a baghouse mist eliminator. The flue gas in this project has high contents of sulfur, phosphorus and other acidic substances, so the flue gas pre-treatment unit must fully consider the corrosion caused by sulfur, phosphorus and other acidic substances. All flues in the flue gas pre-treatment unit are made of materials not lower than 2205 duplex stainless steel and 316L stainless steel.

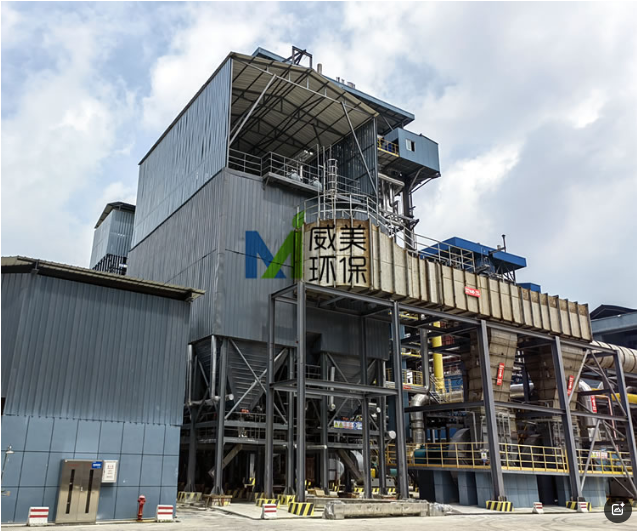

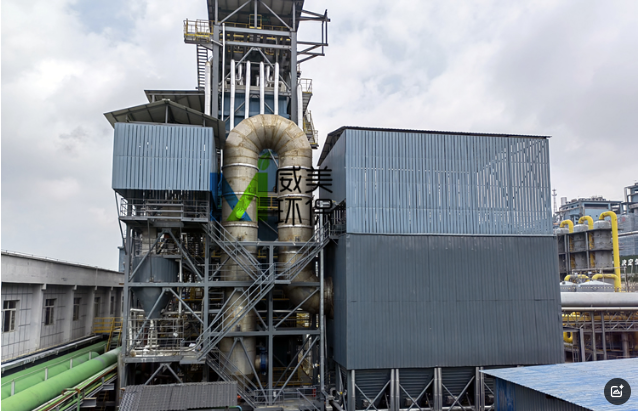

Stable Operation of the Baghouse Dust Collector (1,760 Bags) for the Comprehensive Utilization & Pre-treatment Unit of Yellow Phosphorus Tail Gas
The flue gas pre-treatment unit is composed of four parts: a raw material silo, a feeding system, a mixing and drying system, and a baghouse dust collector .
The yellow phosphorus tail gas is treated by a coal gas purification filter and then enters a gas holder. After being purified by a desulfurization device, it is fed into the 100 t/h boiler of the yellow phosphorus tail gas power generation system for combustion. The exhaust gas generated by combustion is treated through the process of flue gas pre-treatment unit + baghouse dust collector + “wet desulfurization + wet electrostatic precipitator”. SO?, NO? and particulate matter can meet the emission standards, and are finally discharged through the existing 50-meter-high exhaust stack.
Commissioning and Operation of Wet Electrostatic Demister for Tail Gas Treatment of 2205 Duplex Stainless Steel Sodium Hypophosphite,The anode tubes of this wet electrostatic precipitator are made of high-performance 2205 duplex stainless steel. The anode tubes are regular hexagonal in shape, with an inscribed circle diameter of φ360 mm, a length of 6000 mm and a thickness of 2 mm. 2205 duplex stainless steel pipes have excellent mechanical properties and outstanding corrosion resistance.
Commissioning and Operation of Wet Electrostatic Demister for Tail Gas Treatment of 2205 Duplex Stainless Steel Sodium Hypophosphite
Operation of the wet electrostatic precipitator for nitrogen tetroxide tail gas recovery and treatment.
this equipment is mainly used to remove acid mist and sodium salts from the tail gas of nitrogen tetroxide plants. The reaction tail gas contains nitrogen tetroxide and dilute nitric acid, and has certain corrosivity. The lower air chamber, dust accumulation chamber, upper air chamber, anode tubes, internal spray pipes, gas distribution plates and other components of the reaction tail gas system are made of corrosion-resistant 321 stainless steel.

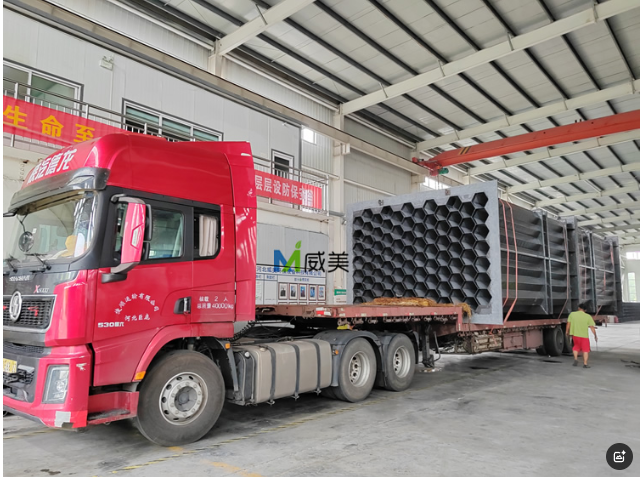

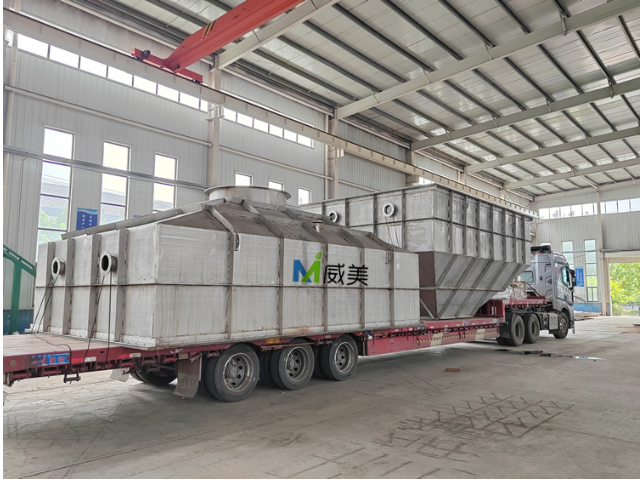

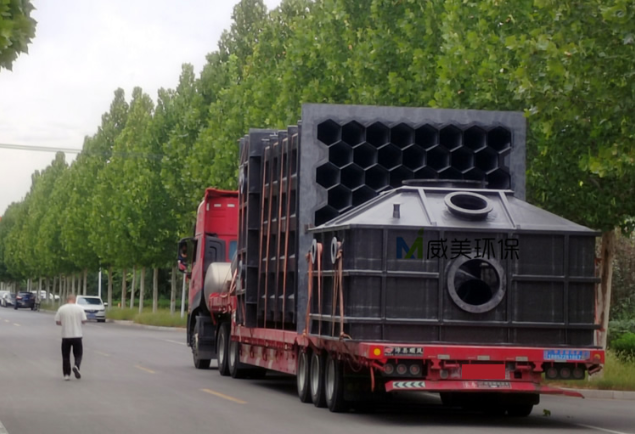

Road Dispatch Site of the Wet Electrostatic Precipitator (WESP) for the Xinjiang 3,000 Tons Dinitrogen Tetroxide Project
Operation of Wet Electrostatic Precipitator for Nitrogen Tetroxide Tail Gas Recovery and Treatment
Operation of 2205 Duplex Stainless Steel Wet Electrostatic Precipitator for Flue Gas Collection and Treatment at the Front of Phosphorus Chemical Electric Furnace.
The main material of this wet electrostatic demister is 2205 duplex stainless steel. Its technical parameters are as follows: the flue gas volume ≤ 80000 m³/h, the flue gas temperature ≤ 90℃, the working pressure ≤ 7000 Pa, and the designed flow velocity ≤ 1 m/s.The flue gas treated by this wet electrostatic demister is the one from the front of the yellow phosphorus electric furnace, which contains highly corrosive media such as sulfur, phosphorus, arsenic and fluorine.

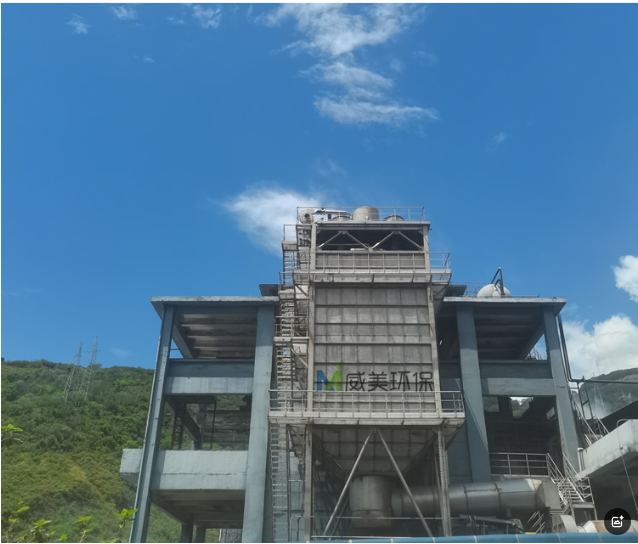

Operation of 2205 Duplex Stainless Steel Wet Electrostatic Precipitator for Phosphorus Chemical Industry
